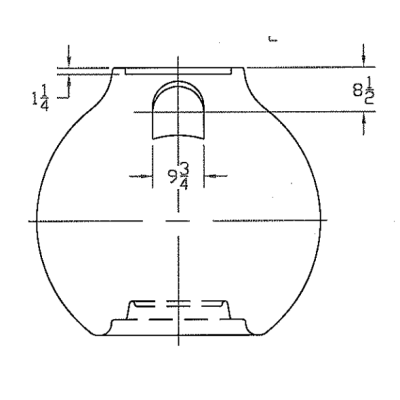

NORWESCO 41321, 325 Cistern Sphere, Legacy Cistern Tanks, 54" Diameter, 54" Overall Height
Legacy Cistern Tanks
Norwesco's below-ground water cisterns feature the same rugged, ribbed design found in our Legacy septic tanks and are lightweight for ease of transport and installation. Our cisterns are ideal for instances when drinking water must be hauled in or if a well does not meet consumption needs. Norwesco cisterns are manufactured using resins that meet FDA specifications to ensure safe storage of potable water. Where applicable, Norwesco's cisterns have been certified under ANSI/NSF Standard 61.
The ribbed tanks (600 gallon and larger) need to be kept 1/4 full at all times.
Manhole extensions and lid/riser combinations are available for instances where it is necessary to bring access to ground level. (See below ground tank accessories at left.) In addition, Norwesco offers a full range of bulkhead fittings to help adapt the cistern to suit specific needs or applications. (See Valves, Couplers, Fittings & Lids under Products tab at top of page.)
All Norwesco cistern tanks are manufactured by means of the rotational molding process, which produces a one-piece, seamless, watertight tank. Polyethylene is unaffected by soil chemicals so Norwesco the tanks will not rust or corrode and require no additional coatings as other tanks do. Norwesco’s strict quality guidelines ensure an environmentally safe cistern tank.
Cistern Tank Installation Instructions
|Below Ground Cistern Tanks|
|Gallon Capacity||Length||Width||Overall Height||Manhole Diameter||Part No.||Availability|
|250 Cistern Sphere||-||47" Dia.||56"||1-20" (62408)||43746||B,C,E,F|
|325 Cistern Sphere||-||54" Dia.||54"||1-20" (62408)||41321||B,C,D,E,F,G,H,L|
|550 Cistern Sphere||-||64" Dia.||67"||1-20" (62408)||40856||B,C,E,F,G,H,L|
|600 Cistern||101"||51"||47"||1-20" (62408)||41328||B,D,F,H|
|1200 Cistern||102"||60"||63"||2-20" (62408)||41329||B,C,D,E,F,G,H,L|
|1400 Cistern||116"||55"||70"||2-20" (62408)||41893||B,C,E,F,G,H,L|
|1700 Cistern||135"||55"||70"||2-20" (62408)||41330||B,C,D,E,F,G,H,L|
Availability Key: A=All; B=St. Bonifacius, MN; C=Lancaster, OH; D=Griffin, GA; E=Shawnee, OK; F=Tooele, UT; G=Owego, NY; H=Washougal, WA; L=Hanford, CA
Tank dimensions and capacities may vary slightly and are subject to change without notice.
