DESCRIPTION

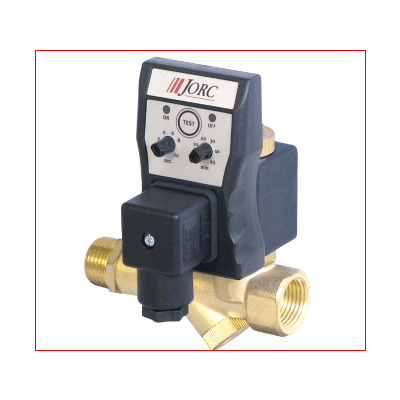

JORC, 1/4" COMBO Condensate Tank Drain Electronic Timer Controller, 115/1/60 with Y-Strainer | 2523-LD
The COMBO timer controlled condensate drain combines an adjustable electronic timer controlled drain, a ball valve and a mesh strainer into one compact easy to install package. Suitable for any flow range and pressure up to 230 PSI, the COMBO is perfect for virtually any compressed air application, especially those with solid particulate contaminants.
With a test button, LED on/off indication and a full serviceable direct acting valve, the COMBO offers affordable, reliable condensate management without the need to install additional valves and strainers. Use it on any compressor, receiver, filter or refrigerated dryer.
The COMBO saves installation time and protects against large particles found in condensate, thanks to the integrated ball valve and strainer. The unit can be shut off from the compressed air system, enabling easy and safe work to be carried out.
The 115VAC version of this drain is supplied with a 6 ft. power cord with plug and the 230VAC version is supplied with a 7 ft. power cord.
FEATURES
- Does not air-lock during operation.
- Installation time saver.
- Any type of compressed air systems and up to 230 PSI.
- TEST (micro-switch) feature.
- Private labelling and colour options.
- Accurate time cycles.
- Premium PCB components selected.
SPECIFICATIONS
MAXIMUM COMPRESSOR CAPACITY | Any size |
PRESSURE RANGE | 0 - 230 PSI (higher pressure available, see OPTIMUM-HP-S |
SUPPLY VOLTAGE OPTIONS | 12 - 380 VAC/DC 50/60Hz. (please indicate) |
MEDIUM TEMPERATURE | 34 - 131 °F |
AMBIENT TEMPERATURE | 34 - 131 °F |
TIMER CYCLE RANGE (ON / OFF) | 0.5 - 10 seconds / 0.5 - 45 minutes |
TIMER PCB | SMD technology, ensuring consistency in production |
TIMER CYCLE INDICATION | Bright LED illumination |
TEST FEATURE | Yes |
VALVE TYPE | 2/2 way, direct acting |
VALVE ORIFICE | 4 mm |
VALVE SEALS | FPM |
INLET/OUTLET CONNECTIONS | 1/4" (F) & 1/2" (M) NPT / 1/2" NPT |
INLET CONNECTION HEIGHT | 0.4" |
SERVICEABLE VALVE | Yes |
VALVE HOUSING MATERIAL | Brass (stainless steel available, see OPTIMUM) |
POWER CONNECTION | DIN 43650-A |
ENVIRONMENTAL PROTECTION | NEMA4 (IP65) |
CALIFORNIA PROPOSITION 65 | See manual |
