NORWESCO 43520, 750 With Septic Adapters, Below Ground Low Profile Septic Tank, Single Compartment
Low Profile Septic

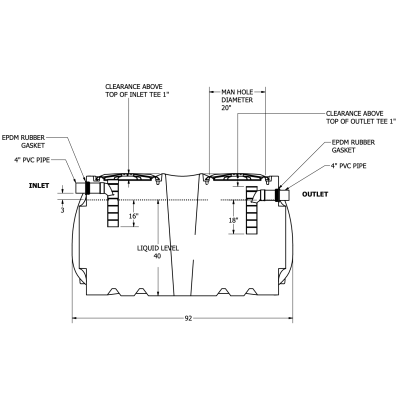

**Picture Shown as Reference only - Please reference the drawing for actual dimensions**
Norwesco Low Profile septic tanks are molded in one piece, requiring no additional assembly, reducing installation time and effort. Other features include:
- Rotationally molded rugged, one-piece tank with no seams to leak.
- No assembly required, reducing installation time and effort.
- No special backfill or water filling required during installation.
- May be pumped dry during pump-outs
- May be installed with 6" to 36" of cover.
- All sizes (with the exception of the 500 gallon) are suitable for use as a septic tank or pump tank and may also be used for non-potable water.
- Access openings and lids accept Norwesco low profile manhole extensions, double-wall corrugated pipe and ribbed PVC pipe.
- Tanks (with the exception of the 500 gallon) are available with PVC tees and gaskets supplied loose or with installed PVC tees and septic adapters.
- Double compartment = 2/3 - 1/3
| Below Ground Low Profile Septic Tanks | |||||||
| Gallon Capacity | Length | Width | Overall Height | Manhole Diameter | Compartment | Part No. | Availability |
|---|---|---|---|---|---|---|---|
| 500 Non-plumbed | 97" | 48" | 42" | 1-20" (63672) | Single | 43522 | C,E,G,L |
| 750 w/gaskets & tees | 92" | 60" | 51" | 2-20" (63672) | Single | 43495 | B,E,G |
| 750 w/septic adapters | 92" | 60" | 51" | 2-20" (63672) | Single | 43520 | E |
| 750 w/gaskets & tees | 92" | 60" | 51" | 2-20" (63672) | Double | 43499 | B,E,G,H |
| 750 w/septic adapters | 92" | 60" | 51" | 2-20" (63672) | Double | 43521 | E |
| 750 w/gaskets & tees-IAPMO | 92" | 60" | 51" | 2-20" (63672) | Double | 44510 | L,O |
| 1000 w/gaskets & tees | 127" | 60" | 51" | 2-20" (63672) | Single | 42405 | B,C,D,E,F,H |
| 1000 w/septic adapters | 127" | 60" | 51" | 2-20" (63672) | Single | 43496 | E,H |
| 1000 w/gaskets & tees-IL | 127" | 60" | 51" | 2-20" (63672) | Single | 43538 | C |
| 1000 w/gaskets & tees-SI | 127" | 60" | 51" | 2-20" (63672) | Single | 40197 | G |
| 1000 w/gaskets & tees | 127" | 60" | 51" | 2-20" (63672) | Double | 43517 | B,C,D,E,F,H |
| 1000 w/septic adapters | 127" | 60" | 51" | 2-20" (63672) | Double | 42406 | E,H |
| 1000 w/gaskets & tees-IL | 127" | 60" | 51" | 2-20" (63672) | Double | 43541 | C |
| 1000 w/gaskets & tees-NC/SC | 127" | 60" | 51" | 2-20" (63672) | Double | 43510 | D |
| 1000 w/gaskets & tees-SI | 127" | 60" | 51" | 2-20" (63672) | Double | 40198 | G |
| 1000 w/gaskets & tees-IAPMO | 127" | 60" | 51" | 2-20" (63672) | Double | 44482 | L,O |
| 1250 w/gaskets & tees | 157" | 60" | 51" | 2-20" (63672) | Single | 43519 | B,C,E,F,H |
| 1250 w/septic adapters | 157" | 60" | 51" | 2-20" (63672) | Single | 43497 | E,H |
| 1250 w/gaskets & tees-IL | 157" | 60" | 51" | 2-20" (63672) | Single | 43539 | C |
| 1250 w/gaskets & tees-SI/SO | 157" | 60" | 51" | 2-20" (63672) | Single | 43544 | D |
| 1250 w/gaskets & tees | 157" | 60" | 51" | 2-20" (63672) | Single | 43572 | G |
| 1250 w/gaskets & tees | 157" | 60" | 51" | 2-20" (63672) | Double | 43503 | B,C,E,F,H |
| 1250 w/septic adapters | 157" | 60" | 51" | 2-20" (63672) | Double | 43501 | E,H |
| 1250 w/gaskets & tees-IL | 157" | 60" | 51" | 2-20" (63672) | Double | 43542 | C |
| 1250 w/gaskets & tees-NC/SC | 157" | 60" | 51" | 2-20" (63672) | Double | 43511 | D |
| 1250 w/gaskets & tees-SI/SO | 157" | 60" | 51" | 2-20" (63672) | Double | 43545 | D |
| 1250 w/gaskets & tees-SI | 157" | 60" | 51" | 2-20" (63672) | Double | 43571 | G |
| 1250 w/gaskets & tees-IAPMO | 157" | 60" | 51" | 2-20" (63672) | Double | 44483 | L,O |
| 1500 w/gaskets & tees | 157" | 69" | 51" | 2-20" (63672) | Single | 43518 | B,C,E,F,G,H |
| 1500 w/septic adapters | 157" | 69" | 51" | 2-20" (63672) | Single | 43498 | E,H |
| 1500 w/gaskets & tees-IL | 157" | 69" | 51" | 2-20" (63672) | Single | 43540 | C |
| 1500 w/gaskets & tees-SI/SO | 157" | 69" | 51" | 2-20" (63672) | Single | 43546 | D |
| 1500 w/gaskets & tees | 157" | 69" | 51" | 2-20" (63672) | Double | 43504 | B,C,E,F,G,H |
| 1500 w/septic adapters | 157" | 69" | 51" | 2-20" (63672) | Double | 43502 | E,H |
| 1500 w/gaskets & tees-IL | 157" | 69" | 51" | 2-20" (63672) | Double | 43543 | C |
| 1500 w/gaskets & tees-NC/SC | 157" | 69" | 51" | 2-20" (63672) | Double | 43512 | D |
| 1500 w/gaskets & tees-SI/SO | 157" | 69" | 51" | 2-20" (63672) | Double | 43547 | D |
| 1500 w/gaskets & tees-IAPMO | 157" | 69" | 51" | 2-20" (63672) | Double | 44484 | L,O |
| IL=for installation in the state of Illinois NC/SC=for installation in the states of North & South Carolina SI/SO=side inlet/side outlet |
|||||||
