NORWESCO 43495, 750 With Gasket & Tees, Below Ground Low Profile Septic Tank, Single Compartment

Low Profile Septic

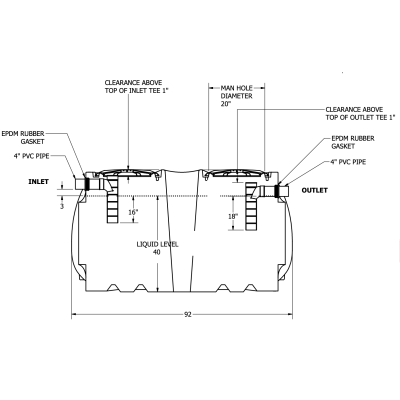

**Picture Shown as Reference only - Please reference the drawing for actual dimensions**

Norwesco Low Profile septic tanks are molded in one piece, requiring no additional assembly, reducing installation time and effort.  Other features include:

  • Rotationally molded rugged, one-piece tank with no seams to leak.
  • No assembly required, reducing installation time and effort.
  • No special backfill or water filling required during installation.
  • May be pumped dry during pump-outs
  • May be installed with 6" to 36" of cover.
  • All sizes (with the exception of the 500 gallon) are suitable for use as a septic tank or pump tank and may also be used for non-potable water.
  • Access openings and lids accept Norwesco low profile manhole extensions, double-wall corrugated pipe and ribbed PVC pipe.
  • Tanks (with the exception of the 500 gallon) are available with PVC tees and gaskets supplied loose or with installed PVC tees and septic adapters.
  • Double compartment = 2/3 - 1/3
Below Ground Low Profile Septic Tanks
Gallon CapacityLengthWidthOverall
Height
Manhole DiameterCompartmentPart No.Availability
500 Non-plumbed 97" 48" 42" 1-20" (63672) Single 43522 C,E,G,L
750 w/gaskets & tees 92" 60" 51" 2-20" (63672) Single 43495 B,E,G
750 w/septic adapters 92" 60" 51" 2-20" (63672) Single 43520 E
750 w/gaskets & tees 92" 60" 51" 2-20" (63672) Double 43499 B,E,G,H
750 w/septic adapters 92" 60" 51" 2-20" (63672) Double 43521 E
750 w/gaskets & tees-IAPMO  92"  60"  51"  2-20" (63672)  Double  44510  L,O
1000 w/gaskets & tees 127" 60" 51" 2-20" (63672) Single 42405 B,C,D,E,F,H
1000 w/septic adapters 127" 60" 51" 2-20" (63672) Single 43496 E,H
1000 w/gaskets & tees-IL  127"  60"  51"  2-20" (63672)  Single  43538
1000 w/gaskets & tees-SI 127" 60" 51" 2-20" (63672) Single 40197 G
1000 w/gaskets & tees 127" 60" 51" 2-20" (63672)  Double 43517  B,C,D,E,F,H
1000 w/septic adapters 127" 60" 51" 2-20" (63672) Double 42406 E,H
1000 w/gaskets & tees-IL  127"  60"  51"  2-20" (63672)  Double  43541
1000 w/gaskets & tees-NC/SC 127" 60" 51" 2-20" (63672) Double 43510 D
1000 w/gaskets & tees-SI 127" 60" 51" 2-20" (63672) Double 40198 G
1000 w/gaskets & tees-IAPMO  127"  60"  51"  2-20" (63672)  Double  44482  L,O
1250 w/gaskets & tees 157" 60" 51" 2-20" (63672) Single 43519 B,C,E,F,H
1250 w/septic adapters 157" 60" 51" 2-20" (63672) Single 43497 E,H
1250 w/gaskets & tees-IL  157"  60"  51"  2-20" (63672)  Single  43539
1250 w/gaskets & tees-SI/SO  157"  60"  51"  2-20" (63672)  Single  43544
1250 w/gaskets & tees 157" 60" 51" 2-20" (63672) Single 43572 G
1250 w/gaskets & tees 157" 60" 51" 2-20" (63672) Double 43503 B,C,E,F,H
1250 w/septic adapters 157" 60" 51" 2-20" (63672) Double 43501 E,H
1250 w/gaskets & tees-IL  157"  60"  51"  2-20" (63672)  Double  43542
1250 w/gaskets & tees-NC/SC 157" 60" 51" 2-20" (63672) Double 43511 D
1250 w/gaskets & tees-SI/SO  157"  60"  51"  2-20" (63672)  Double 43545
1250 w/gaskets & tees-SI 157" 60" 51" 2-20" (63672) Double 43571 G
1250 w/gaskets & tees-IAPMO  157"  60"  51"  2-20" (63672)  Double  44483  L,O
1500 w/gaskets & tees 157" 69" 51" 2-20" (63672) Single 43518 B,C,E,F,G,H
1500 w/septic adapters 157" 69" 51" 2-20" (63672) Single 43498 E,H
1500 w/gaskets & tees-IL  157"  69"  51" 2-20" (63672)  Single  43540
1500 w/gaskets & tees-SI/SO  157"  69"  51"  2-20" (63672)  Single  43546
1500 w/gaskets & tees 157" 69" 51" 2-20" (63672) Double 43504 B,C,E,F,G,H
1500 w/septic adapters 157" 69" 51" 2-20" (63672) Double 43502 E,H
1500 w/gaskets & tees-IL  157"  69"  51"  2-20" (63672)  Double  43543
1500 w/gaskets & tees-NC/SC 157" 69" 51" 2-20" (63672) Double 43512 D
1500 w/gaskets & tees-SI/SO  157"  69"  51"  2-20" (63672)  Double  43547
1500 w/gaskets & tees-IAPMO  157"  69"  51"  2-20" (63672)  Double  44484  L,O
IL=for installation in the state of Illinois
NC/SC=for installation in the states of North & South Carolina
SI/SO=side inlet/side outlet
